One-step Blowing Machine.
Product Introduction
One-step bottle blowing machine, also known as “injection stretch blow molding integrated machine”, is a machine that integrates the two manufacturing steps of preform injection molding and stretch blow molding of plastic bottles on one device to complete continuously. From plastic raw materials (usually PET, PP, etc.) to the final finished bottle, the entire production process is completed in a closed machine without any intermediate links.
Core Objective: "Single mold with four working positions" rotary operation.
Multiple models are available for selection.

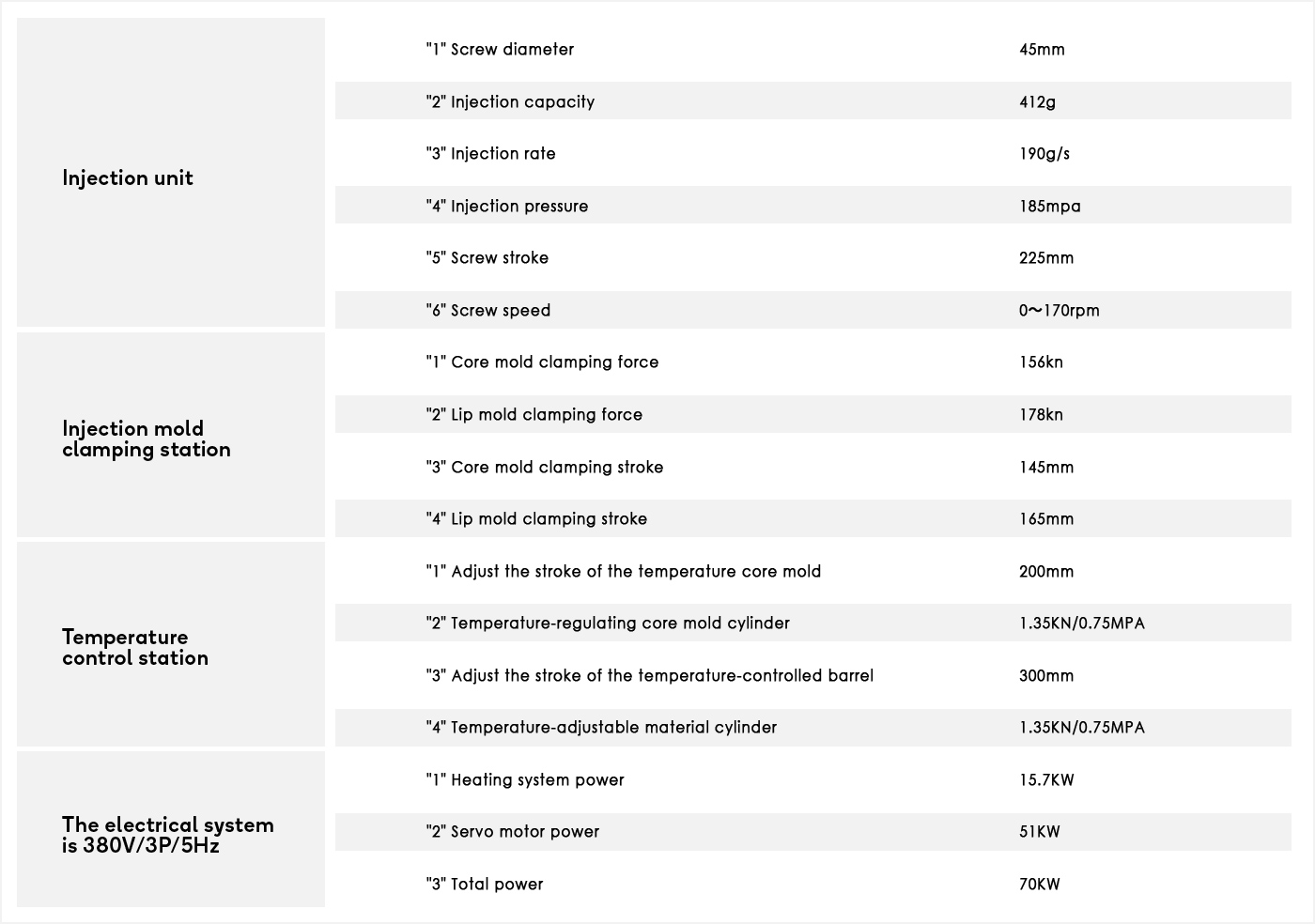

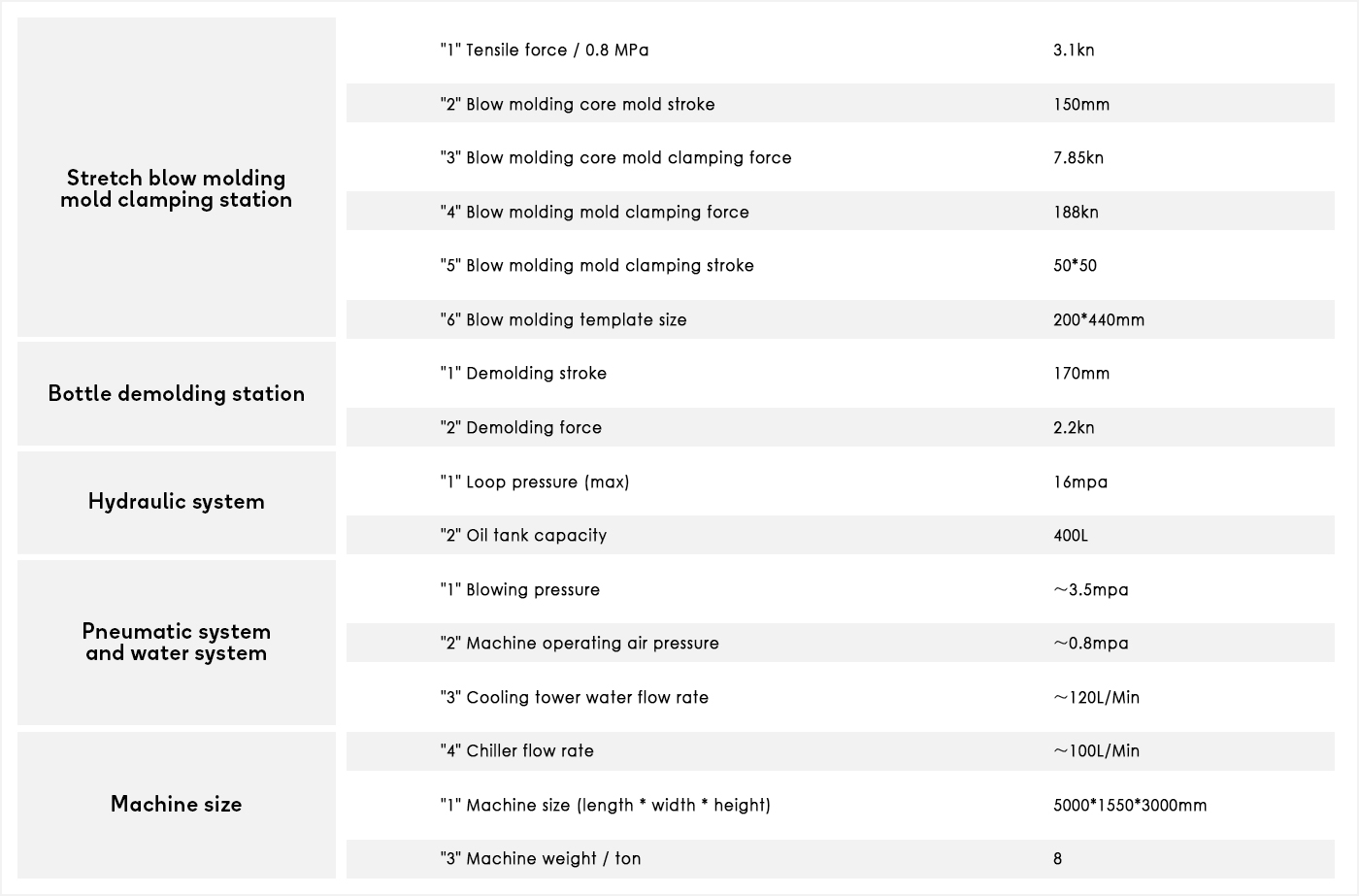

Parameters

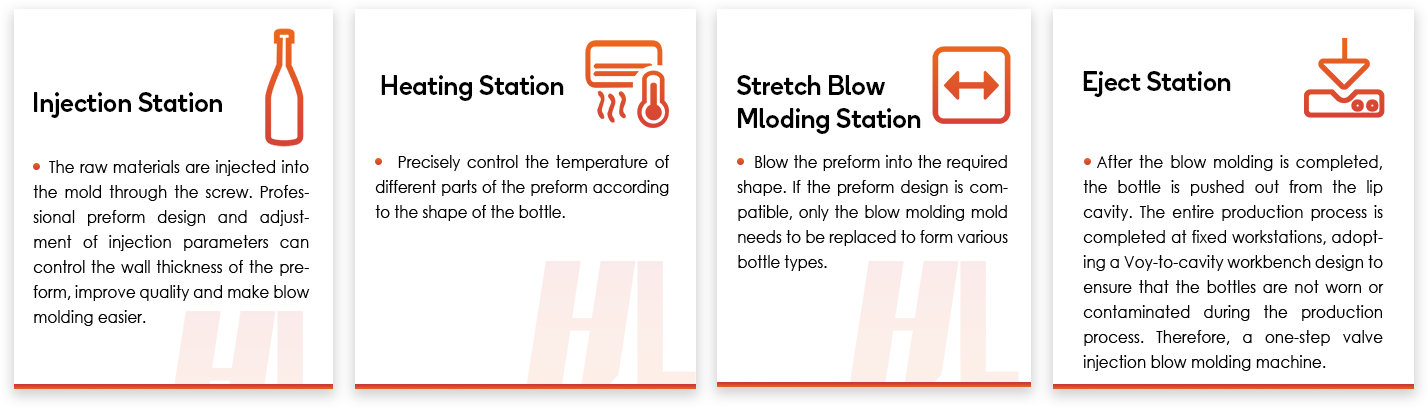

Core working principle
Its working process can be summarized as a rotational operation with "one mold and four working positions"

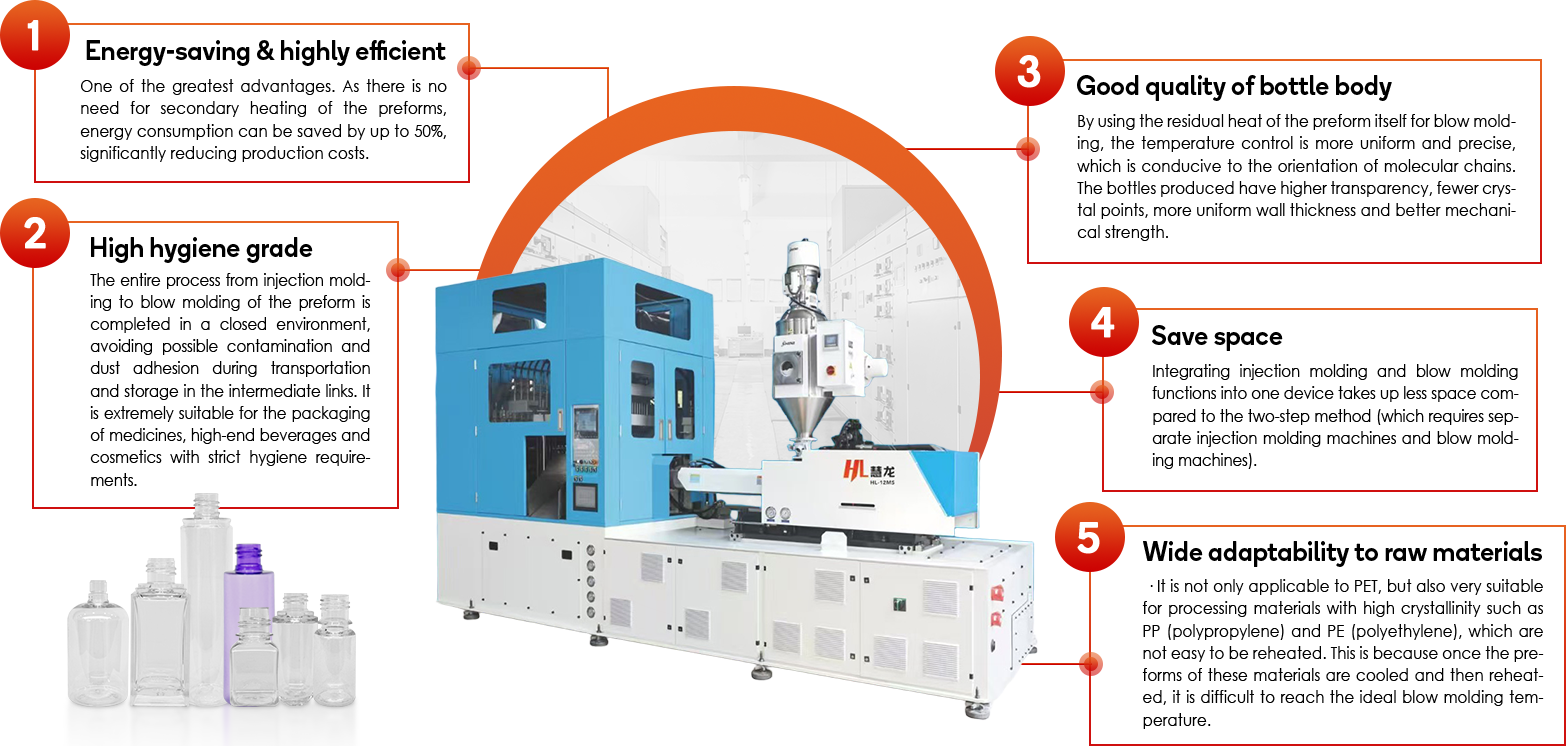

Main features and advantages
After the injection molding process is completed, the bottle blank is directly stretched and blown using its own residual heat.
Application field
The one-step blow molding machine has excellent hygiene properties and high-quality bottle production.
